AHT10温温度传感器模块介绍

AHT10是一款精密数字温湿度传感器，以其卓越的精度和可靠性而闻名，常用于天气监测、气象站、暖通空调系统、家庭自动化、工业自动化和物联网设备等。

AHT10的温度测量范围为-40°C至85°C，精度为±0.3°C，湿度测量范围为0%至100%，精度为±2%，其紧凑的设计和I2C接口使其能够轻松集成到各种项目中。

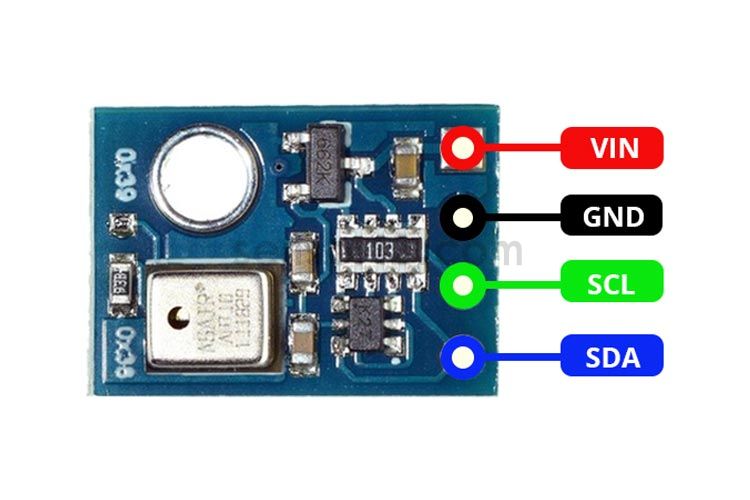

AHT10管脚定义

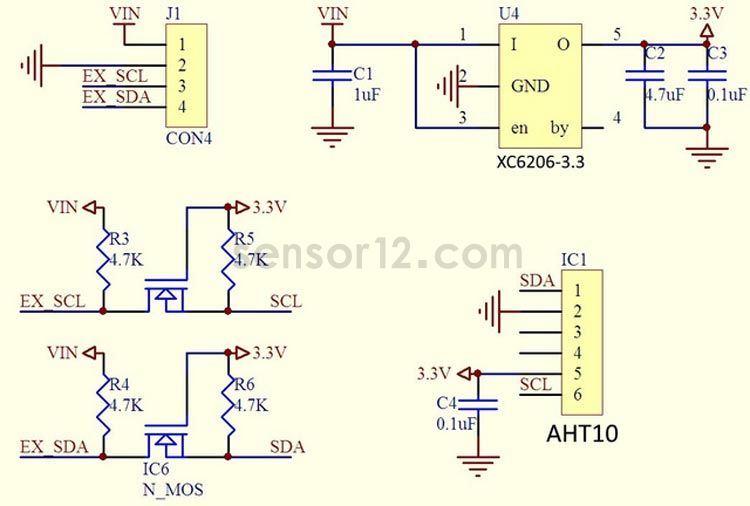

AHT10模块电路原理图

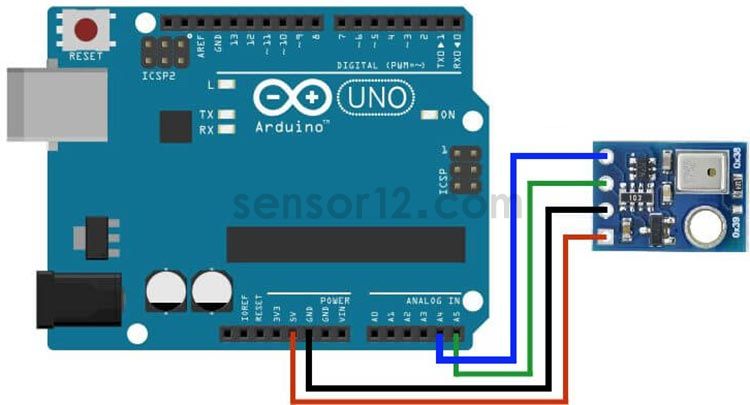

AHT10与Arduino UNO连接

基于Arduino UNO的AHT10代码

#include < Wire.h> // Library to establish I2C communication
#include < AHT10.h> // Library to use the AHT10 sensor

AHT10 myAHT10(0x38); //AHT10 instance, address 0x38

void setup ()
{
     Wire.begin(); //Function that initializes the Wire library.
     Serial.begin(9600); //initializes Serial communication.
     Serial.println("Initialising AHT10 Sensor");
     if(!myAHT10.begin()) //If communication with the sensor fails, an error message is printed
     {
       Serial.println ("Sensor error!");
       while(1);
     }
}

void loop()
{
  float temp = myAHT10.readTemperature(); //read temperature from sensor and store it in a variable.
  float hum = myAHT10.readHumidity(); //read humidity from sensor and store it in a variable.

  Serial.print("Temp: "); Serial.print(temp); Serial.print("°C  "); //print the temperature value.
  Serial.print("Humidity: "); Serial.print(hum); Serial.println(" %"); //print the humidity value.
  delay(1000);
}
